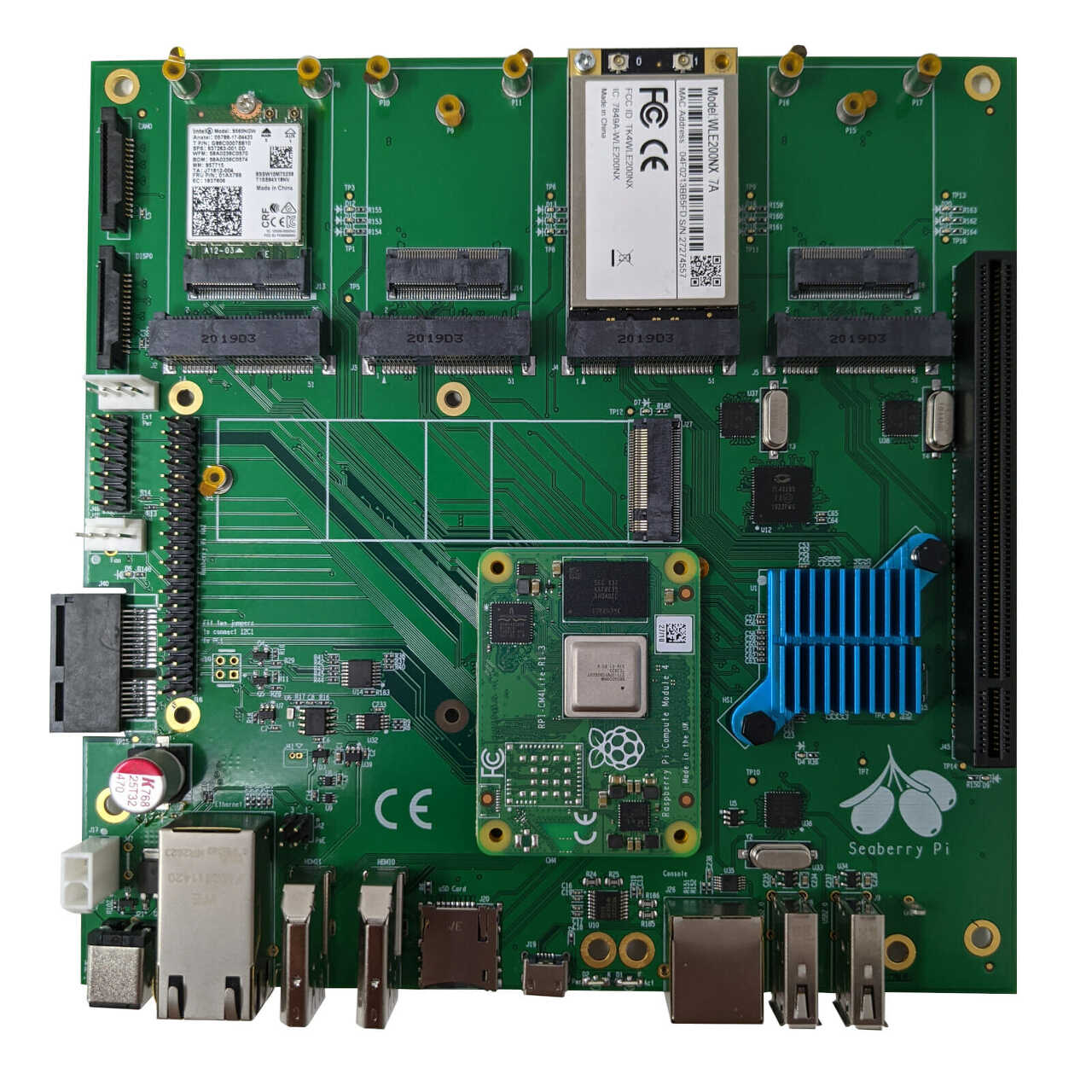

라즈베리 파이 컴퓨트 모델용 Mini-ITX 보드 출시







• Compatible systems-on-module
  • Raspberry Pi CM4 module (Regular or Lite)
  • Radxa CM3
  • Pine64 SoQuartz
• Storage – 1x MicroSD card for Raspberry Pi CM4 Lite, 1x M.2 socket for NVMe SSD (See PCIe expansion section)
• Video Output – 2x HDMI output ports, 1x MIPI DSI connector
• Camera Input – 1x MIPI CSI connector
• Networking – Gigabit Ethernet RJ45 port capable of PoE 802.3bt (100 W) power input handling
• USB
  • 2x USB 2.0 ports
  • 1x micro USB port to program regular Raspberry Pi CM4 modules with eMMC flash
• PCIe expansion
  • 1x 16-lane size vertical PCIe connector with x1 lane implementation in the standard Mini-ITX location
  • 1x 1-lane PCIe side port connector to allow to plug a standard x1 PCIe add-on card on a left side
  • 4x mini PCIe slots with PCIe, USB 2.0, and I2C interfaces
  • 4x M.2 Key E slots with x2 (dual) PCIe lanes, USB 2.0 interfaces
  • 1x M.2 Key M slot to allow M.2 2280 NVME SSD implementing x1 PCIe lane
• I/O expansion
  • 40-pin GPIO header compatible with Raspberry Pi HAT expansion boards
  • Additional I2C header
• Misc
  • PWM fan connector
  • RJ45 port implementing CISCO style RS232 serial console cable
  • 2×7 row header for jumper-selected settings/controls
  • RTC + external battery header
• Power Supply
  • 12V DC input via power barrel jack and 2-pin header; mutually inclusive to support power failover
  • SATA power header with 12V, 5V, GND
  • 4-pin PoE header compatible with Raspberry Pi PoE HAT
• Dimensions – 170 x 170 mm (Mini-ITX form factor)

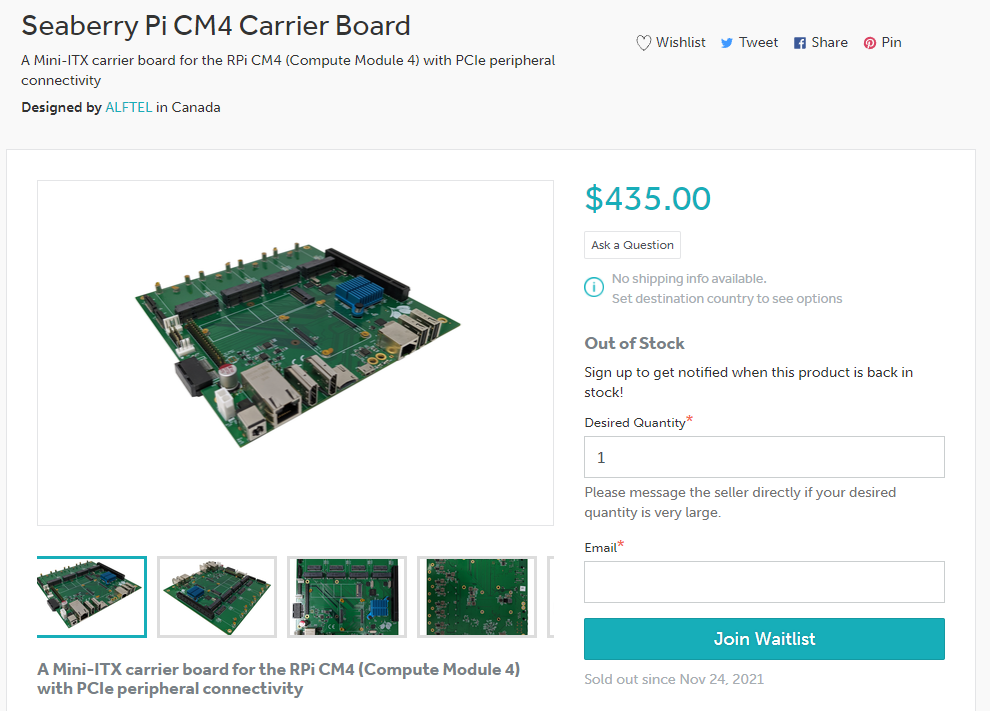

https://www.tindie.com/products/alftel/seaberry-pi-cm4-carrier-board/

Seaberry Pi CM4 Carrier Board by ALFTEL on Tindie



---





이걸보고 처음에 든 생각는 충격에 머리가 굳어버렸다는 느낌이었고, 이어서 의문밖에 안 나온다.

아니 이걸 왜? 왜 굳히 Mini-ITX 보드로 출시를? 게다가 435달러....?
